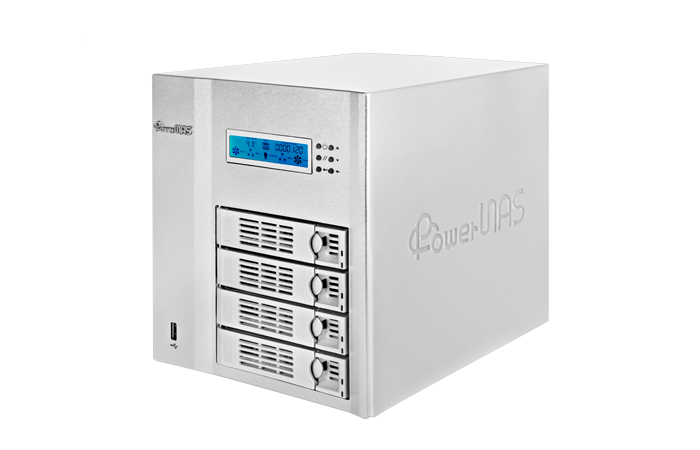

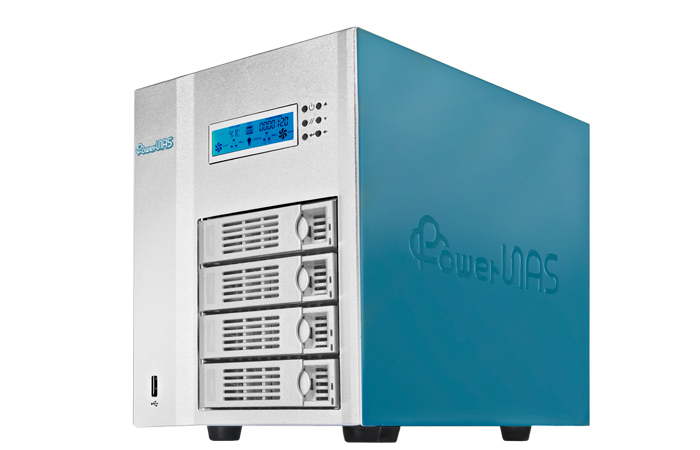

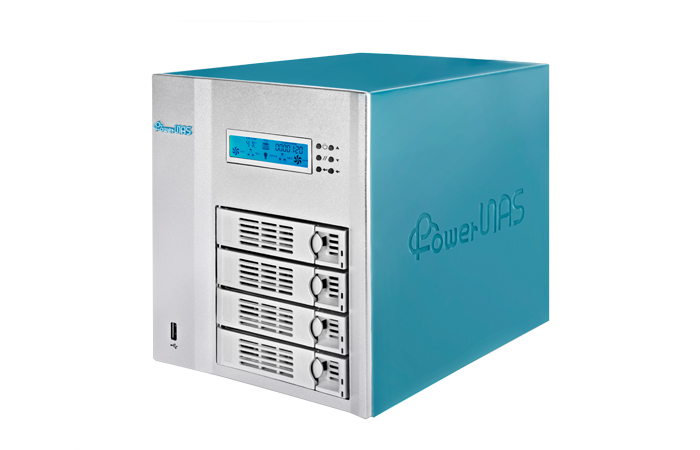

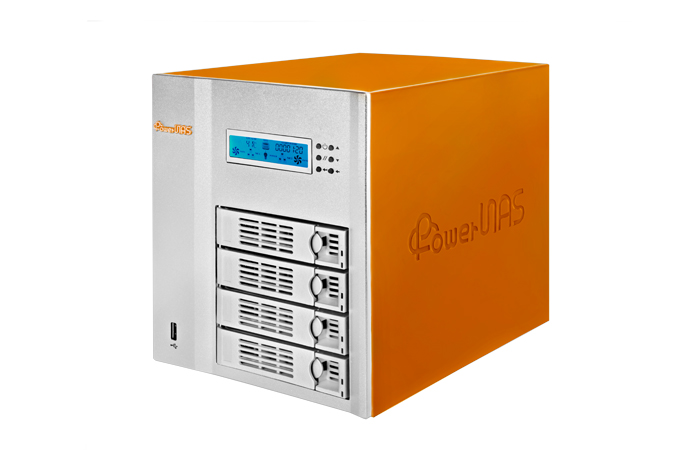

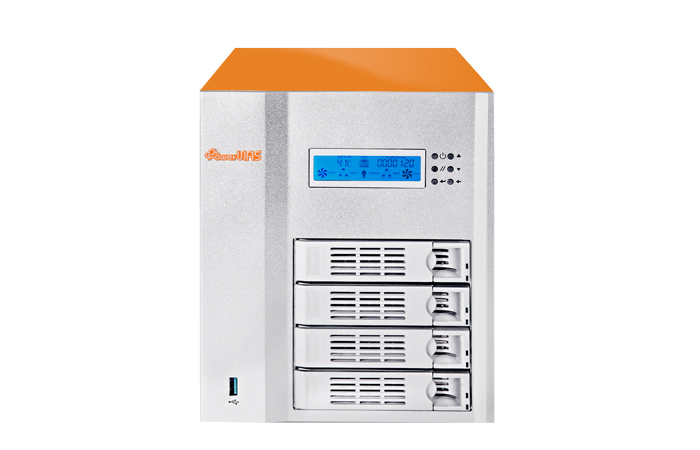

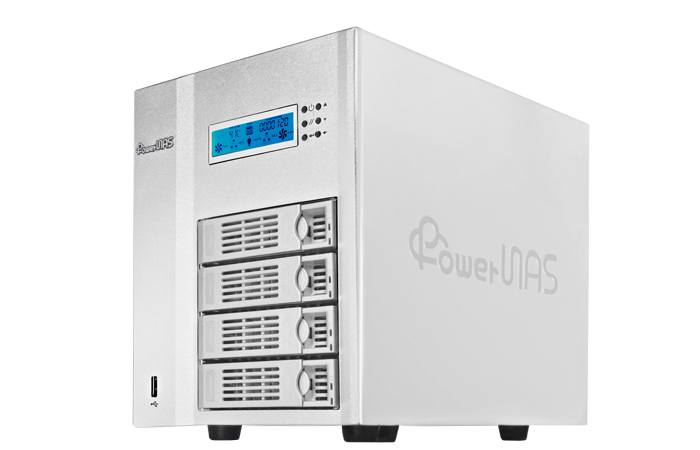

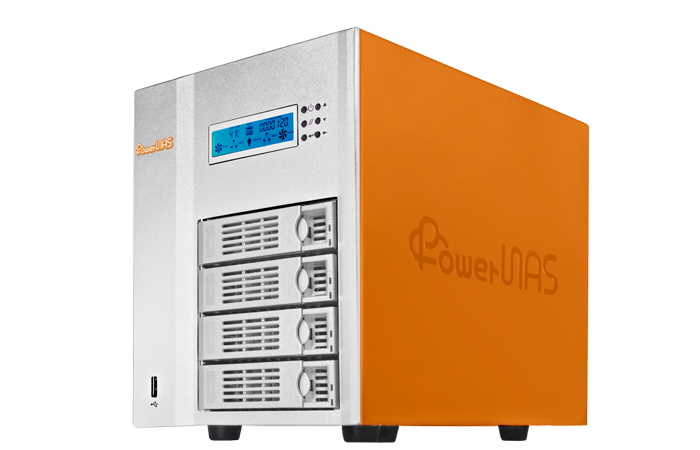

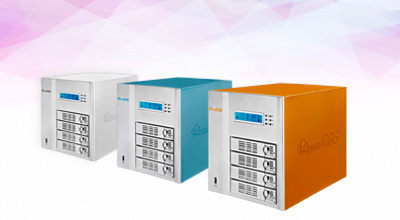

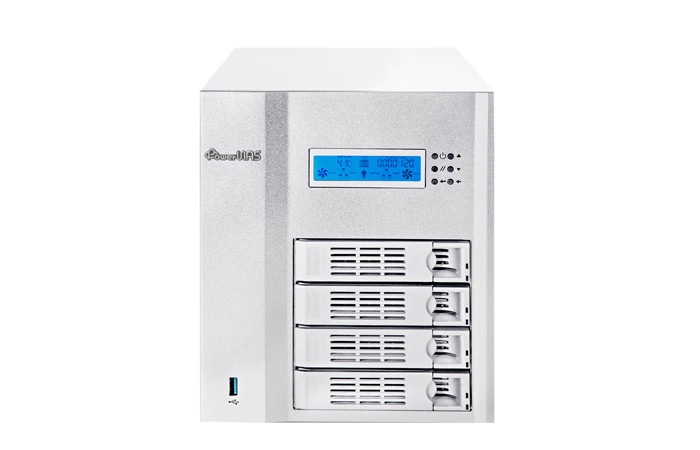

PN-401 Best network storage partner for home/ SOHO / SME



High performance hardware RAID

  • Quick format hard drive, supporting 0,1,5 and 10 RAID modes.
  • Hardware RAID chipset with both safety and efficiency.

 High-quality hardware specifications.

  • Intel Celeron 1037U dual-core processor. Save energy and quiet.
  • OS with built-in large 8GB storage capacity.
  • 2GB memory. Excution is more faster.



Pioneering Windows8.1 style management interface

  • You can use WIN8.1 APP to control the PowerNAS hardware options.
  • Post info easily via the PowerNAS community sharing function.
  • The function of PowerNAS use of record can let you track your use history.
  • Various gadgets concentrated in PowerNAS Center make your use more convenient.



Oauth community networking(Facebook/Google+)

  • NAS users also can use the community account to login. Reduce one set of account/password for you.
  • Via the review steps of community friends list, you can login the system directly after approval.



Simple operational interface

  • Intuitive operational interface which is user-friendly and easy to operate
  • The draggable menu, create your personalized desktop.

After switching to expert mode, you can custom-made your LINUX NAS.

  • PowerNAS adopts the Server edition of Ubuntu OS.
  • Follow your own preferences to set the built-in Ubuntu desktop environment.



How to apply the PowerNAS

  • Backup/restore notebook data
  • Watch the XBMC home theatre
  • DVD audio/video capture
  • File management
  • Smartphone directory backup
  • XBMC remote control
  • Shoot and share photos instantly
  • AV file management
  • Attached with the third-party packages such as FTP and iTunes server,etc.
  • Sticky
  • Windows8.1 PowerNASCenter
  • FB and G+ community share




Processor Intel Celeron 1037U dual core 1.8 GHz
Chipset Intel HM77
System Memory 2GB DDR3L 1600 (Expandable, up to 8GB)
HDD Slot
4
SATA DOM
SATA III 8GB
HDD Support
SATA II / SATA III
HDD Type
  • ‧ 3.5" HDD
  • ‧ 2.5" HDD / SDD
Max HDD Capacity
24 TB (6 x 4 TB HDD)
RAID Support
Hardware RAID (0,1,5,10)
Hot Plug


USB 2.0 Port
2 (Rear 2)
USB 3.0 Port
3 (Front 1, Rear 2)
Audio
MIC 1 ,Earphone 1
Internal HDD
EXT4
External HDD
  • ‧ EXT4
  • ‧ EXT3
  • ‧ FAT
  • ‧ NTFS
  • ‧ HFS+ (read-only)
Size (w x d x h) mm
177x243x200
Weight [kg]
4.6
NIC Port

Intel82574 Gigabit Ethernet X 2

Wake on LAN


System Fan


Supports external wireless dongle


Internal Wifi and BT (optional)
wireless 802.11ac. Bluetooth 4.0
HDMI (1.4a)


VGA Port


PCIe 16x slot(4x) 1
Internal Audio 6 channel ALC 662 chipset
Noise 35db
Power auto ON


Power Supply


AC input voltage
100V/ 240V
Current Frequency
50/60Hz
Power consumption
29W
Operation Temp
5°C to 35°C (40°F to 95°F)
Storage Temp
-10°C to 70°C (15°F to 155°F)
Relative Humidity
5% to 95% RH
Certified
  • FCCClass B
  • CE
  • BSMI
Warranty
2 years
PN-401*1
Screw 1 bag Network Cable*2Power line *1
Logo Stickers
Manual *1
